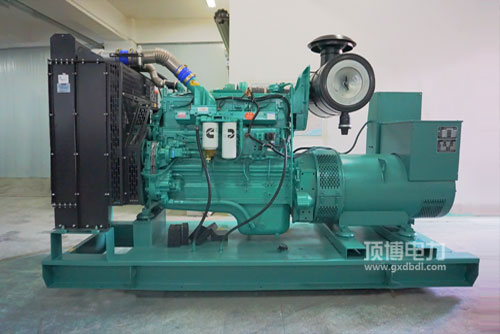

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机气油城市发展性好: 高级的气油调控程序，独特的STC、ESTC 分等级调控程序，比较特殊来设计的发动机活塞最上层然烧室，直流高压喷洒气油，宽裕做雾化，然烧宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打火机瞬态耐腐蚀性出色: 漂亮的打火机整体性规划，密切配合康明斯独家的EFC系统性，管理精密度较高，卡死时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用汽车发因素升电机功率高: 建筑体方案紧促.自己的外观布置房间合适，使用市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50需要满足在我国非通道第二价段及美洲Tier2. Tier 3排放出法律法规规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须得要性好， 打火机程序运行及维护与清洗清洗友盒，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率比率 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯生产发电用汽车发驱动力的特质：质量分数小， 再压缩比低， 格栅板热空气进行加热，更易启动服务器，手机车截电源线的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启思想应用	最常用工作效率(kW)Prime Power	备品工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
